What Is the Bridge Cam Gauge and How Do I Use It? Welding Guage

The Bridge cam gauge is a unique and versatile welding gauge that is used mostly on welded surfaces and connections. For welding inspectors, it's a highly useful visual inspection tool.

To measure weld characteristics, the gauge incorporates a revolving dial and a sliding pointer. Up to 2” or 60mm, the measurement is displayed in inches and millimeters.

The Bridge Cam Gauge can be used to measure the following:

1. The angle of preparation from 0 to 60 deg
2. Excess weld metal ( welding cap or capping size )
3. The depth of welding undercut or pitting
4. Fillet weld throat size
5. Fillet leg length
6. Misalignment ( high-low )

For guideline on how to use the bridge cam gauge please refer pictures below;

Depth of Welding Undercut or Pitting

Excess Weld Metal

Fillet Leg Length

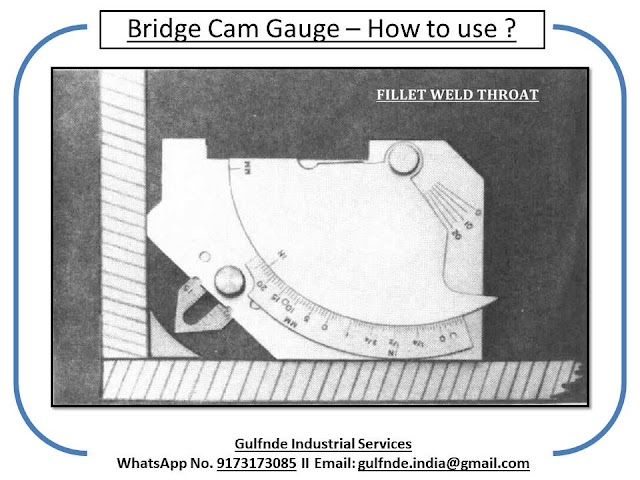

Fillet Weld Throat Size

Angle of Preparation

Misalignment (Hi-Low)
